Atlas Apex 9 ALI Certified 9,000 lb 4-Post Lift
Atlas Apex 9 ALI Certified 9,000 lb 4-Post Lift Original price was: $3,000.00.Current price is: $1,299.00.
Back to products
TUXEDO FP12K-K 12,000 LB CABLE DRIVEN 4 POST LIFT
TUXEDO FP12K-K 12,000 LB CABLE DRIVEN 4 POST LIFT Original price was: $3,000.00.Current price is: $1,499.00.

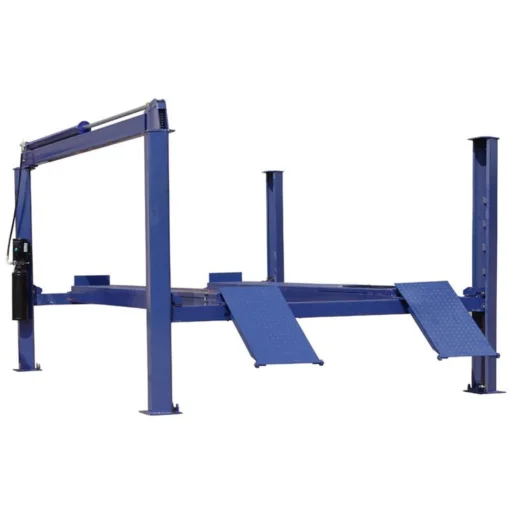

TUXEDO FP14K 14,000 LB CHAIN DRIVEN 4 POST LIFT

Original price was: $4,000.00.Current price is: $1,899.00.

Buy Now
Compare
Add to wishlist
SKU: lifter78 Category:
Description

Features & Benefits

  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long
  • Diamond Plated Runways
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • 5 yr Structural – 2 yr Hydraulic Warranty



Atlas® ATTD-414 Specifications

Capacity 14,000 lb.
Lifting Height 80″ (6′ 8″)
Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″)
Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″)
Overall Length With Approach Ramp 255″ (21′ 3″)
Length Between Columns 197 1/4″ (16′ 5 1/4″)
Runway Length 208 5/8″ (17′ 4 5/8″)
Runway Width 20″
Thickness Of Runway 8 3/4″
Width Between Runways 46 7/8″ (w/ Rail 44 3/8″)
Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″)
Clearance Under Runways 71 1/4″ (5′ 11 1/4″)
Clearance Between Columns 116″ (9′ 8″)
Height Of Columns 91 1/8″ (7′ 7 1/8″)
Maximum Wheel Base 197″ (16′ 5″)
Drive Thru 102 1/8″ (8′ 6 1/8″)
Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement 220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement 3-5 GallonsAW32/AW46 (NOT INCLUDED)
