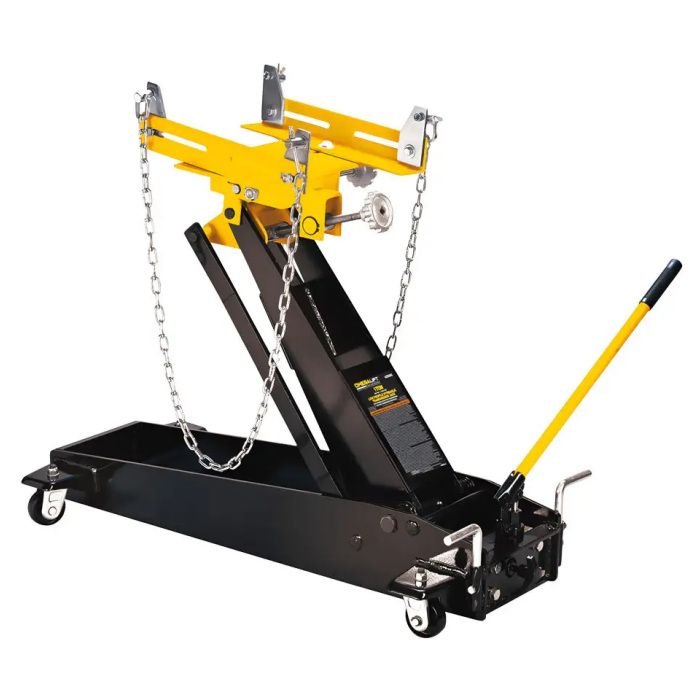

Floor style transmission jacks are especially handy when you don’t have a full rise auto lift. It features a fully adjustable saddle that can tilt side to side, and front to back, to allow you to position the transmission perfectly for mounting.

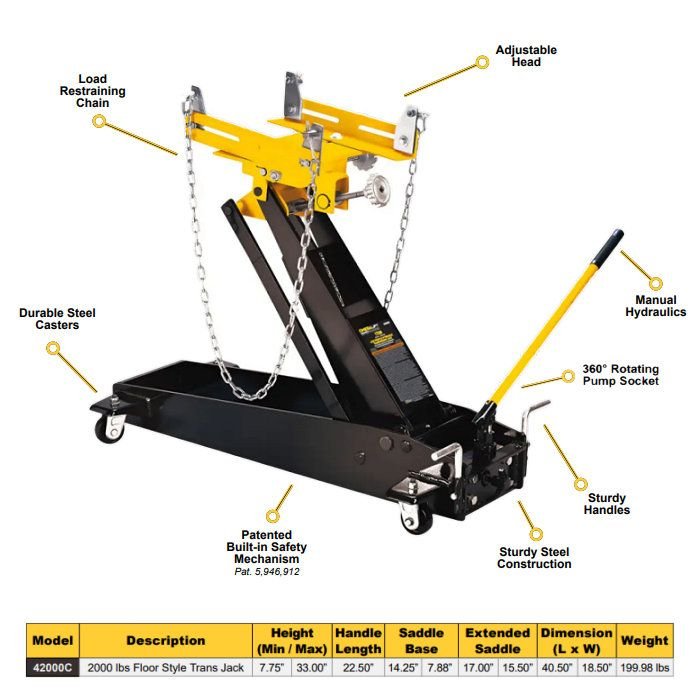

Features
- The Adjustable Head Can Be Tilted Forward, Backward And Side To Side For Optimum Alignment Of Transmission Bolt Patterns And Pins
- Hydraulic System Is Protected From Internal Damage By A Patented By-Pass Mechanism
- Rugged Steel Wheels And Full Swivel Ball Bearing Casters
- U.S. Patented Built-In By-Pass Device Protects Hydraulic System From Overpumping Damage
- Multi-Adjustment Knobs Ensure That Transmission Cradle Is Always At The Right Angle To Position And Accept Any Load
- Load-Restraining Chain Is Vital For Raising And Lowering Safety
- Four Wheel Casters Allow Easy Movement, Positioning Of Transmission Jack
Specifications
- Lifting Capacity: 2,000 lbs.
- Min. Height: 7-3/4″
- Max. Height: 33″
- Handle Length: 22-1/2″
- Saddle Base: 14-1/4″ x 7-7/8″
- Expanded Saddle Area Max.: 17″ x 15-1/2″
- Dimensions (L X W): 40-1/2″ x 18-1/2″
- Weight: 199 lbs.
- Warranty: (1) Year Limited
