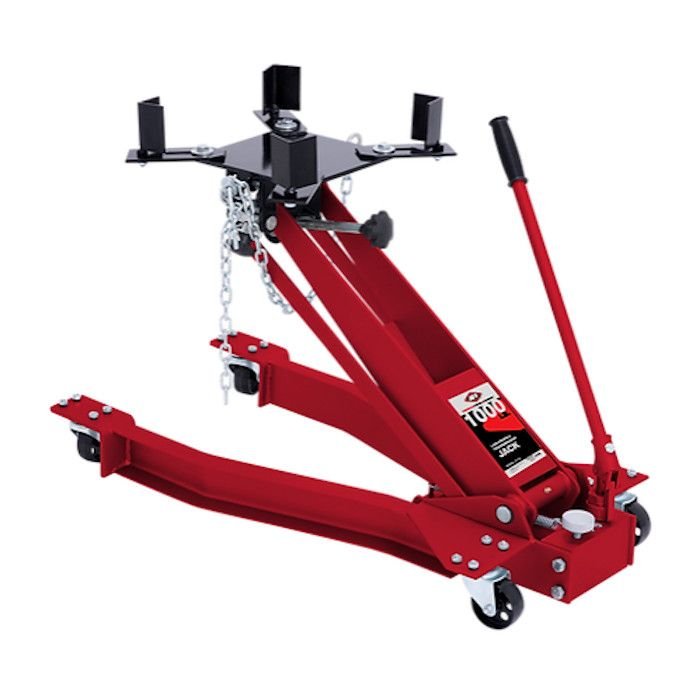

The AFF Low Profile Transmission Jack provides the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more. It is ideal for light to large-size heavy-duty truck transmissions and has a low profile style that provides superior clearance while the wide chassis is designed for efficient load distribution and increased stability. It has a 4-way tilting head that allows easy positioning for installation and removal of transmissions. The universal saddle is fully adjustable with adjustable arms for easy positioning and the long handle pivots 360° around the pump.
Features
- Ideal for light to medium-weight truck transmissions
- Low profile style provides superior clearance
- Wide chassis design for efficient load distribution and increased stability
- 4-way tilting head allows easy positioning for installation and removal of transmissions
- Fully adjustable universal saddle with adjustable arms for easy positioning
- Long handle pivots 360° around the pump
Specifications
- Capacity: 3,000 lbs.
- Low Height: 6.875″
- High Height: 31.75″
- Front Tilt: 15°
- Rear Tilt: 12°
- Side Tilt: 15°
- Head Width: 7″-13″
- Head Length: 8″-11″
- Weight: 119 lbs.
