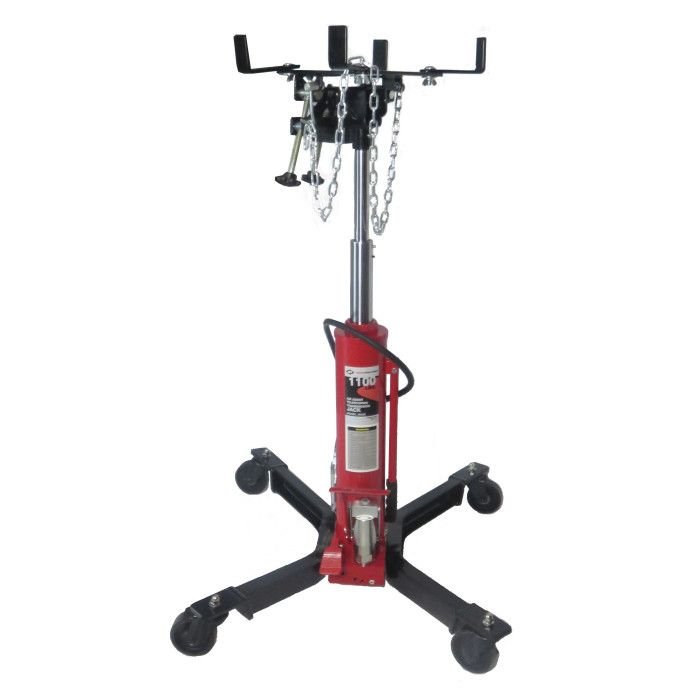

The AFF Telescoping Air Assist Transmission Jack provides the service technician the capability for “one-man” removal and installation of medium duty transmissions, differentials, transfer cases, fuel tanks, and more. It is ideal for light to medium size heavy-duty truck transmissions and has a double pump hydraulic system for quick lift operation. The powder coat finish provides resistance to corrosion, chemicals, and scratches. The chrome plated pump core and piston rod reduces friction and provides long service life. It has an adjustable saddle with corner bracket and safety chain.
Features
- Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials
- Double pump hydraulic system for quick lift operation
- Powder coat finish provides resistance to corrosion, chemicals, and scratches
- Chrome plated pump core and piston rod reduces friction and provides long service life
- Adjustable saddle with corner bracket and safety chain
- Optional Fuel Tank Adapter available. Includes safety straps and grounding cables.
Specifications
- Operation: Air Assist
- Capacity: 1,100 lbs.
- Ram Stages: 2
- Low Height: 37″
- High Height: 78″
- Front Tilt: 28°
- Rear Tilt: 49°
- Base Width: 28″ x 32″
- Shipping Weight: 170 lbs.
- Warranty: (1) Year Limited
