About Single Rail Folding Motorcycle Trailer:
The team who gave you Trinity MT3, Slick Wheelie, and My Best Buddy Cargo Trailer XL has done it again! Introducing our Single Motorcycle Trailer: Ace! Our Ace is a high quality product that keeps your personal economy in mind. Most trailers on the market cost more, increase gas consumption, and are made to transport multiple motorcycles. Not this one! Ace costs less, weighs less (less gas), accommodates only one bike; and it folds for easy storage!
Here’s how it works:
1. Disengage the tongue, wheel chock, and framing bars.*
2. Release and fold the rail and ramp onto each other.
3. Next, turn the folded ramp and rail unit until it is parallel to The Ace’s axle.
4. Then, secure the folded unit with the included U-piece and nuts.
That’s it. You’re done. You can now store your Ace wherever you like!
*Ace uses latch and hinge pins to lock and unlock into the folded and unfolded positions.
Features:
- Heavy-duty steel construction
- Folds for easy storage – reduces in length from 119†to 55â€
- Swivel casters for effortless maneuvering
- Fenders

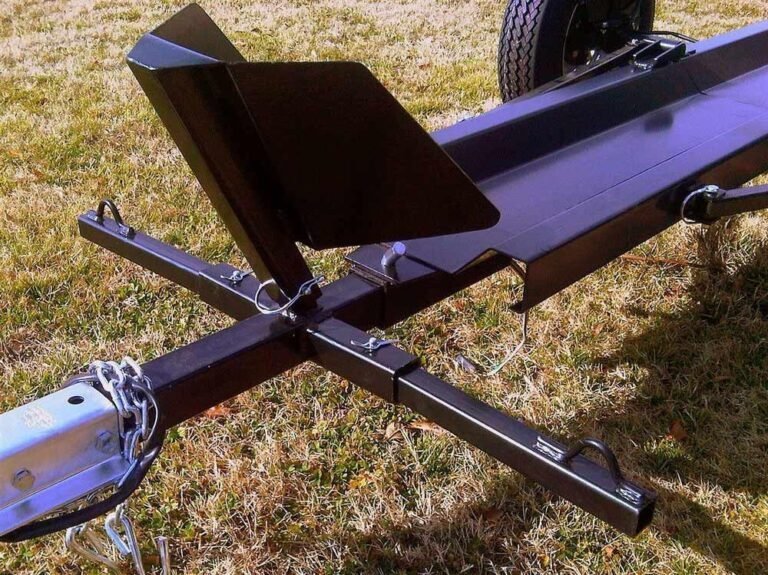

- Wheel chock
- Loading ramp
- Wide channel rail accommodates vast range of tire sizes
- No frills straight axle – loaded trailer and motorcycle suspension dampen road vibrations
- Transports Goldwing motorcycles, Harley-Davidson, cruisers, sport bikes, and more***
- Running board upgrade – optional
- Rust-resistant powder coat finish
- Minimal assembly required – approximately 15 minutes
- 12†aluminum wheel upgrade– FREE—not as a paid option like our competitors
Specifications:
- Overall Trailer Length – 119†L
- Overall Trailer Width – 55†W
- Overall Trailer Height – 28″ H
- Rail Length – 93†L
- Ramp Length – 40†L
- Maximum Bike Length – 106†L
- Width at the Bottom of the Rail – 5 ½†W
- Width at the Top of the Rail – 9†W (inside)
- Width at the Top of the Rail – 12¾†W (outside)
- Folded Dimensions – 55†L x 21†W
- Hitch – Class 2 or Higher
- Hitch Height – 14†H
- Ball Size – 2’’
- Tire Size – 5.30-12
- Wheel Size – 12â€
- Air Pressure – 80 cold psi
- Empty Weight – 300lb
- Maximum Load Capacity – 1,000lb
- Frame Material – Steel
- Finish – Powder coated
